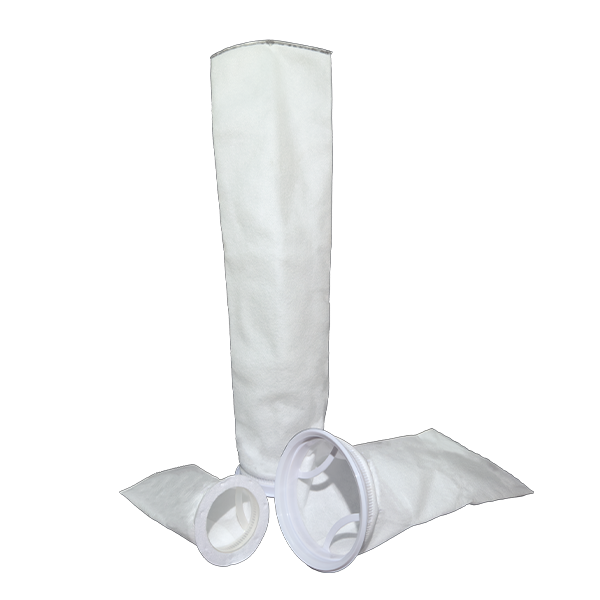

Claryflow Polypropylene Filter BagGopani Product Systems Private Limited

Gopani creates filter bags with a meticulous manufacturing process, using only high-grade fabrics from leading global textile mills.
Our manufacturing merges both traditional and modern automated processes, resulting in quality and innovative products. Our competent and trained team is committed to maintaining top-tier product standards to ensure customer satisfaction.

Features and Benefits

Gopani filter bags have a high dirt-holding capacity and can effectively filter both solid and gelatinous particles.
Our products offer excellent quality at competitive prices.
The glazed or singed finishes on our filter bags minimize fiber shedding.
The filter bags provide high flow rates with minimal pressure drops.
Our filter bags are compatible with a wide range of chemicals.
The fully welded construction of our filter bags ensures longevity.
We offer custom flanges as per specific requirements upon request.

Applications

Perfect for high-temperature filtration applications.
Used in Water Treatment to filter fine particles and sediments.
Effective for filtering solvents and oils.
Suitable for filtration in paint and coating industries.
Commonly used in air filtration systems.

Specifications

Materials
Filter Media
Polypropylene (Glazed), Polyester (Singed)
Retainer
Universal Polypropylene Collar Steel Ring
( Stainless Steel 316 / Zinc Coated Steel Ring )
Retention Rating
1, 3, 5, 10, 25, 50, 75, 100, 200 μm others on request
Configuration
Bag Size (inch)
Size1 (7”x16”L), Size 2 (7”x32”L),
Size 3 (4”x8”L), Size 4 (4”x14”L),
Other Sizes ( 4″ x 10″, 4″ X 20″ , 4″ x 24″ ),
Custom Sizes Available on Request
Bag Type
Fully Welded ( Bottom, Seam, Collar ),
Sewn Collars + Welded Seam and Bottom ( for Steel Rings )
Maximum Operating Conditions
Maximum operating temperature
80 °C ( PP Bags )130°C ( PE with Steel Rings )
Maximum Flow Rates
18 m3/hr (Size-1)
34 m3/hr (Size-2),
6 m3/hr (Size-3), 12 m3/hr (Size-4)
